Welcome to the Pneumatics Online 3D Product Configurator

Click on an image below to enter the configurator of your choice....


ISO Cylinders	NFPA Cylinders	Rodless Cylinders	Non Rotating Cylinders Compact Cylinders Index Tables	Air Preparation	Grippers

Coming Soon...

Slides

Rotary Actuators


Additional Features:
>Part Number Search
>Choice of language

You will quickly be able to select a suitable product and preview it in full 3D. Once signed in, you will have access to all of the available downloads for your product selection. These downloads will cover 2D/3D cad files, product pdf's and contact information for detailed requirements.

System Requirements:
Pentium 500 or higher
Internet Explorer 5 or higher

Java enabled

Best viewed with a screen area set to 1024x768 pixels

Our simple navigation will enable you to get the product information you require fast. If you need some help with calculations try our online calculator page then get back to the selection. New calculators will be added shortly to cover new product ranges as they become available.

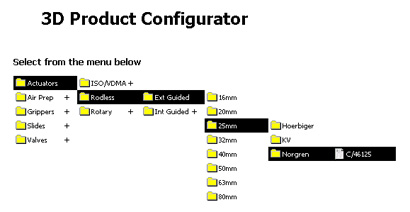

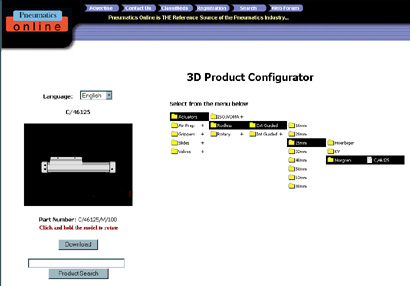

It's easy! Simply mouse over the product folder of your choice to reveal the available product documents. To select the product just click on one of the available items and your done! A window will then open on the left side of the page previewing your request. If it does not appear to be what you want, simply reselect. Next, click the download button to be shown all the related media available for your selection. Just download what you want and go back for more.

We will be starting with Actuators but will soon make available other core categories such as Air Preparation, Valves, Accessories and Vacuum components.
